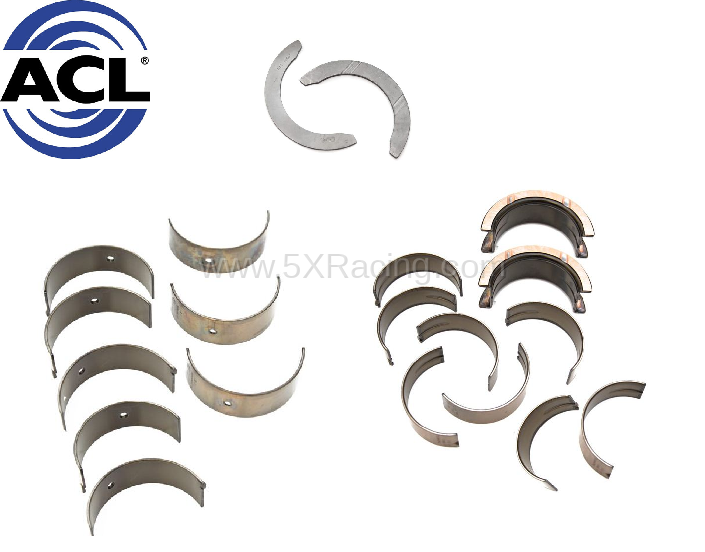

Our ACL Race Series Complete Engine Bearing set for Miata's will provide all necessary engine bearings needed for rebuilding your Miata's engine. Please consult with your engine builder on whether or not you will need to use standard or oversized bearings as each engine is different and if you need to have your crankshaft resurfaced or not. 1 set - ACL Crankshaft Thrust Bearing Set for Mazda Miata (p/n: 1T8353) 1 set - ACL Race Series Connecting Rod Bearing Set for Mazda Miata (p/n: 4B8351H) 1 set - ACL Race Series Engine Main Bearing Set for Mazda Miata (p/n: 5M8353H)
High strength overlay plate with reduced thickness for improved fatigue properties Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing. Increased crush for improved bearing retention Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing. Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films. 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings. Tight consistent wall tolerances to help you maintain consistent clearances. Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts. Q: Some of the ACL Race Series bearings contain an X suffix. What does this mean?
The ACL Race Series Bearings that contain an X suffix have an extra +0.001" oil clearance over a STD sized bearing. These bearings are only available in the STD size. Q: Some of the ACL Race Series bearings contain a D suffix. What does this mean?
The ACL Race Series Bearings that contain an D suffix contain a dowel hole locator in the lower half. This is designed for engines that use dowel pins, but can also be used in engines without dowel pins.
ACL Race Series Complete Engine Bearing Set for Mazda Miata
Miata Engine Bearings
8234989 - ACLRSM
Our kit includes:
Availability: Standard sizes usually in stock. Non-standard typically drop shipped
Pricing:
$145.00
Description
ACL is the engine bearing choice of 5X Racing for our Spec Miata race engines!
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
Technical Info about ACL Race Series Bearings and their part numbers:
The ACL Race Series Bearings that contain an X suffix have an extra +0.001" oil clearance over a STD sized bearing. These bearings are only available in the STD size.
The ACL Race Series Bearings that contain an D suffix contain a dowel hole locator in the lower half. This is designed for engines that use dowel pins, but can also be used in engines without dowel pins.
Details
- 8234989 - ACLRSM
- 8234989
- ACLRSM
- ACL Engine Bearings
- Available
- Standard sizes usually in stock. Non-standard typically drop shipped
- New
Shipping Information
- Item Requires Shipping
- 1.0 lbs.
- W5.0000” x H5.0000” x L5.0000”
